A Whole House Fan Company
A Whole House Fan Company

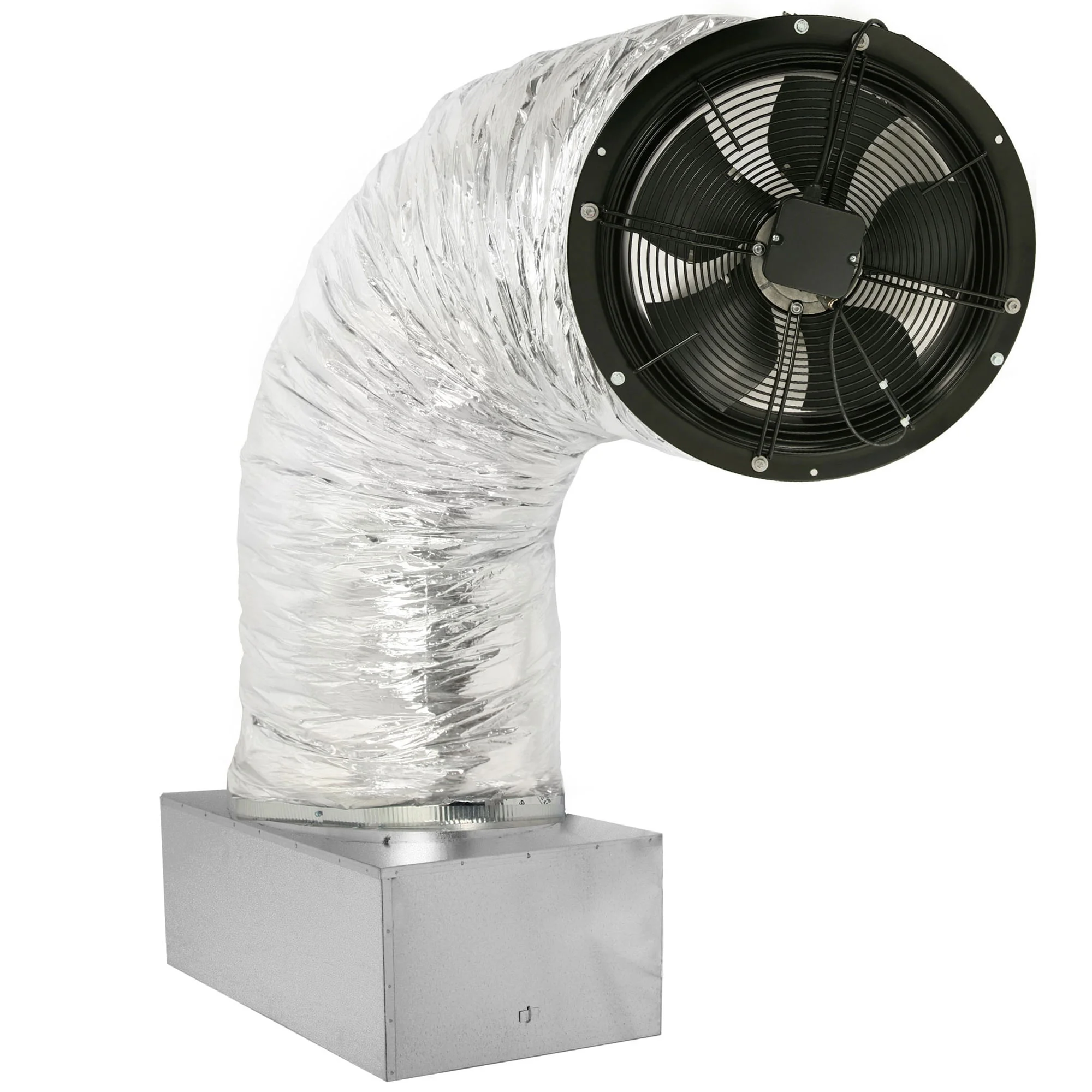

The CentricAir 1.5 small whole house fan is for cooling an individual room such as a large bonus room or a couple of small rooms (up to 700 sqft). It requires approximately 1.5 sqft of net free attic ventilation and delivers 1263 CFM (CA Title 24 Airflow). This small room exhaust fan uses 143 WATTS of energy, costing less than $0.05 per hour to operate.
This 1250 CFM small whole house fan comes with an option of a single speed remote control with timer. There is also an upgrade option for this small ventilation fan that includes a two-speed (Hi/Low) remote with timer & temp control or two speed HI/LOW wall switch and digital timer. (See Control Options Toward Bottom of Page)
IMPORTANT: All CFM ratings for CentricAir have been verified by an independent testing agency authorized by the State of California as meeting the strict CEC standard. When comparing CFM (airflow) ratings against similar style whole house fans, it is important to compare the CEC certified airflow rating. This is the true apple to apples comparison.
The CentricAir 1.5 is a high quality, very powerful and ultra quiet natural cooling solution. It uses a German engineered industrial grade fan motor that can provide 30% more power while using 1/3 less energy as compared to other industry standard fans.
These high-end industrial grade motors are built to last and are rated for approximately 40,000
hours of operation. The noise level is also really something to hear – or, actually not hear. At a very quiet 49 dBA on high, the 1.5 is whisper quiet. Every aspect of this system is built to a
rigorous specification suitable to demanding industrial applications and is completely maintenance free.
The CentricAir 1.5 uses an economical maintenance free backdraft damper with gasket to prevent air leakage. The gravity fed damper opens with air flow and drops closed when the fan is off.
The CentricAir 1.5 comes with a high air flow register that reduces air movement noise through the register. These high-performance grills look great too, so your system looks as inconspicuous as it sounds.
The German-engineered sealed motor and gravity damper never requires lubrication or maintenance of any type.
| Airflow | 1263 CFM (max); 793 CFM low speed |
|---|---|
| Fan | 14-inch, industrial-grade motorized impeller |
| Energy use | 143 Watts |
| Efficiency | 8.83 CFM/Watt (max) |
| Acoustical | 47 Decibels (dBA); 45 dBA low speed |
| Attic seal | Maintenance Free Backdraft Damper |
| Control | Wireless remote; optional wall switch |
| Grille | Low profile, hi-air flow, cube-core aluminum (white) |
| Installation | Fits in between 16" on center joists |
| Rough opening | 14" × 14" |
| Required attic venting | 2.0 sq. ft. net-free |
| Grille size (outer) | 16" × 16" |
| Unit weight | 35 lbs total |
| Electrical | 120 VAC, 60 Hz |
| Warranty | 15 year limited whole house fan motor warranty. All other components and electrical parts are warranted for 1 year from date of purchase. Warranty excludes batteries. |
| Damper size | 14" x 14" x 13.75" (L x W x H) |
| Control | Choice of:
|
| Insulation | R-5 |
Due to product improvements and equipment upgrades, performance ratings and specifications are subject to change without notice.
Wireless Single speed remote control allows you to operate the fan up to 100 feet away.
Industrial grade gravity fed rectangular backdraft damper requires no power and is standard with all CentricAir whole house fans. The R5 insulated gravity backdraft damper is designed keep attic air from entering the living space when the whole house fan is not in use.
The single speed whole house fan timer allows you to operate the fan on high speed. Countdown digital wall timer. This wall fan timer fits in a single gang box.
OR
Plug & Play. No Wires To Run. Just plug into an outlet.
Our wireless whole house fan single speed remote control with timer allows you to operate the fan up to 100 feet away.
Make your system more convenient to use and eliminate the need to cut holes and run wires down the wall with…
OR
This CentricAir remote control wirelessly controls whole house fan using built-in timer or by temperature and can be operated from anywhere in the home. Never overcools the home and eliminates homeowner having to get up to adjust a timer. Never wastes energy because fan only runs when needed. Simple and Fast Installation - Eliminates wiring…
Two-speed wall switch with 50′ Cable. Temperature, Timer and Speed Control. Improves Comfort and Energy Efficiency. Plug & Play Connection. Eliminates Installing and Wiring Line Voltage Timer and Speed Switch. Purchase this whole house fan wall switch online.
