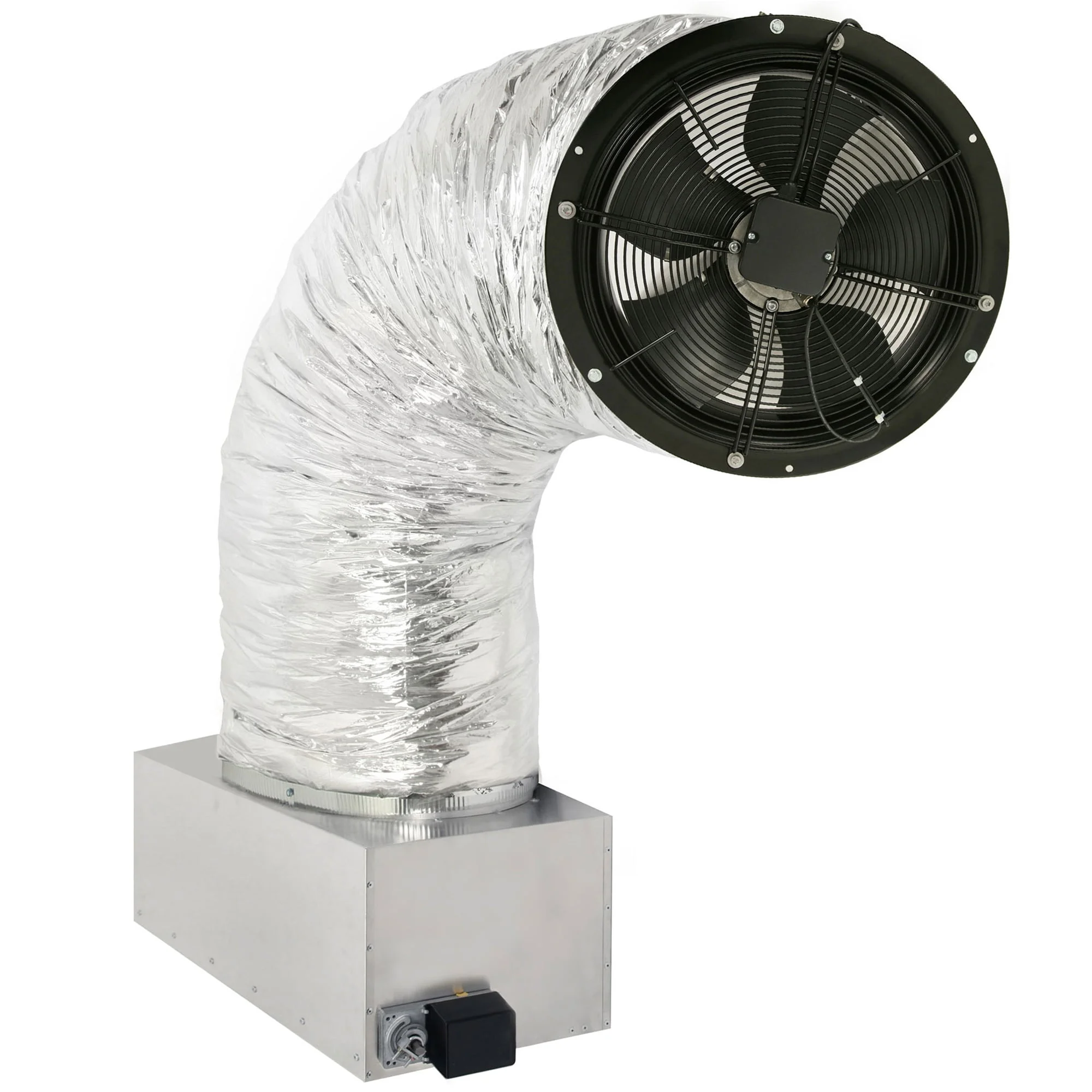

CentricAir 4.0 whole house fan delivers a powerful 3921 CFM (HVI-916 certified airflow rating). It requires about 5.0 sqft of net free attic ventilation and costs about $0.10 per hour to operate. It uses 623 WATTS of power and is designed to cool 2-story homes up to 4400 sqft and 1-story homes up to 3000 sqft.
It comes with an option of an On/Off remote control with timer or two-speed (Hi/Low) remote with timer & temp control or two speed HI/LOW wall switch and digital timer. Also available with select CentricAir products is our exclusive cold climate damper. (See Included & Upgrade Options Below)
IMPORTANT: All CFM ratings for CentricAir have been verified by an independent testing agency authorized by the State of California as meeting the strict (HVI-916) standard. When comparing CFM (airflow) ratings against similar style whole house fans, it is important to compare the HVI-916 CFM certified airflow rating. This is the true apple to apples comparison. The following link is to the CA.Gov website and allows you to search a company’s Brand to see their products HVI-916 CFM rating CA.Gov
The CentricAir 4.0 is a high quality, very powerful and ultra quiet alternative cooling solution. It uses a German engineered industrial grade fan motor that can provide 30% power while using 1/3 less energy as compared to other industry standard fans.
These high-end industrial grade motors are built to last and are rated for approximately 40,000 hours of operation. The noise level is also really something to hear – or, actually not hear. At a very quiet 49 dBA on high, the 4.0 is very quiet. Every aspect of this system is built to a rigorous specification suitable to demanding industrial applications and is completely maintenance free.
A fundamental problem with traditional whole house fans was air leakage between the attic and living spaces. This could result in dirty attic air entering your home. The 4.0 takes care of this problem with an industrial-quality damper that is thermally insulated and maintenance free. Silicone seals are provided to ensure sealing longevity; they also provide phenomenal resistance to weathering and changes in temperature. Silicone seals have an approximate service life of 30 years and remain flexible down to -40 degrees F/C.
The CentricAir 4.0 comes with a high air flow register that reduces air movement noise through the register. These high-performance grills look great too, so your system looks as inconspicuous as it sounds.
The German-engineered sealed motor and damper never requires lubrication or maintenance of any type.
Airflow | 3921 actual CFM (max); 2184 CFM low speed |
---|---|
Installation | Fits in between 16" or 24" on center joists |
Electrical | 120 VAC, 60 Hz |
Unit weight | 64 lbs total |
Damper box size | 28" × 14" × 13.75" (L × W × H) |
Grille size (outer) | 16" x 30" |
Required attic venting | 5.0 sq. ft. net-free |
Rough opening | 14" × 28" |
Grille | Low profile, hi-air flow, cube-core aluminum (white) |
Fan | 20-inch, industrial-grade motorized impeller |
Control | Remote control or wall switch |
Insulation | R-5 or R-10 (cold weather damper ) or R-50 (extreme cold weather damper) |
Attic seal | Industrial-grade maintenance free damper |
Acoustical | 49 Decibels (dBA); 47 dBA low speed |
Efficiency | 6.13 CFM/Watt (max) |
Energy use | 640 Watts |
Warranty | 15 year limited fan motor warranty. All other components and electrical parts are warranted for 1 year from date of purchase. Warranty excludes batteries. |
Control | Choice of:
|
Damper | Choice of:
|
Optional Wall Mount Adapter | Choice of:
|
Due to product improvements and equipment upgrades, performance ratings and specifications are subject to change without notice.

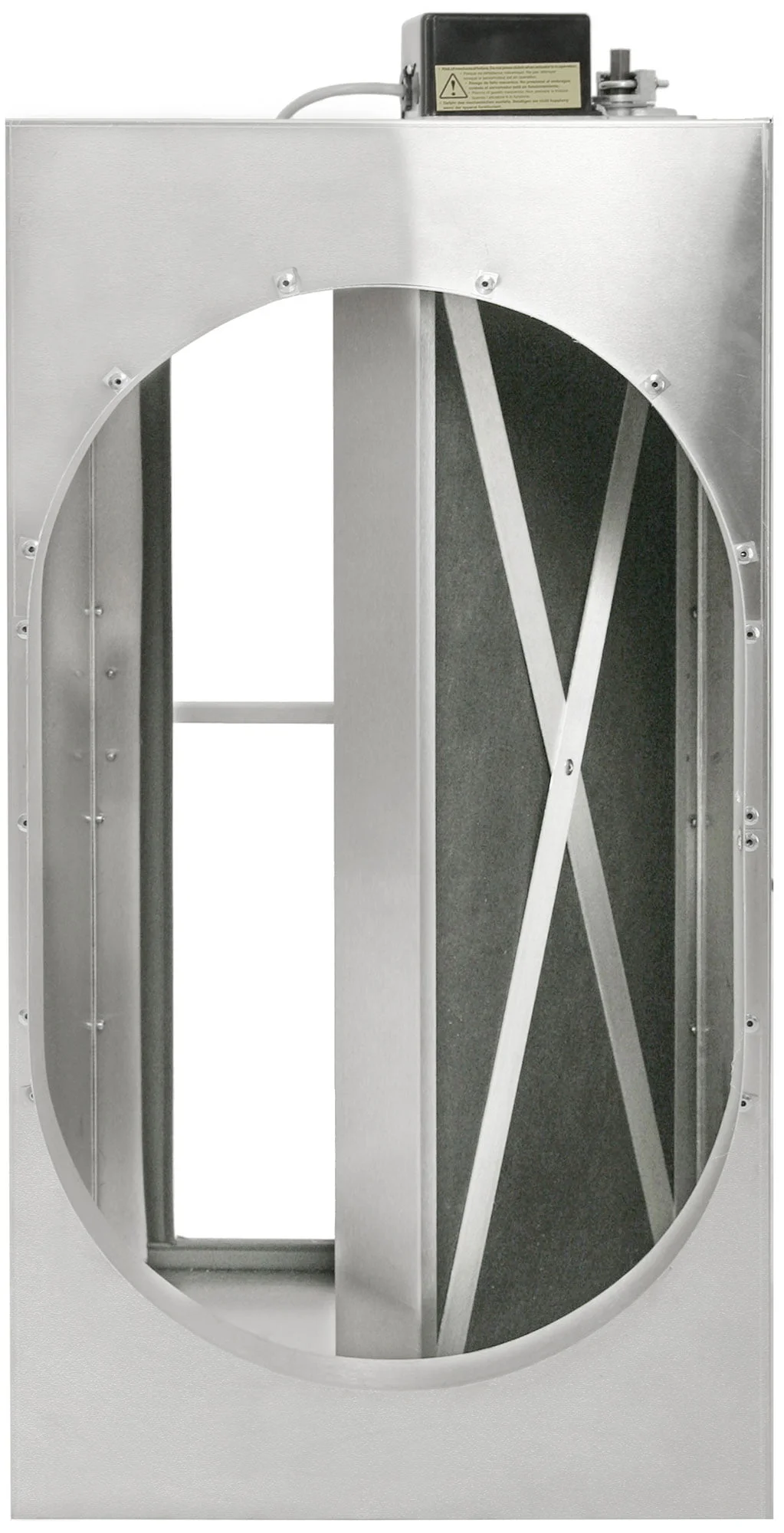

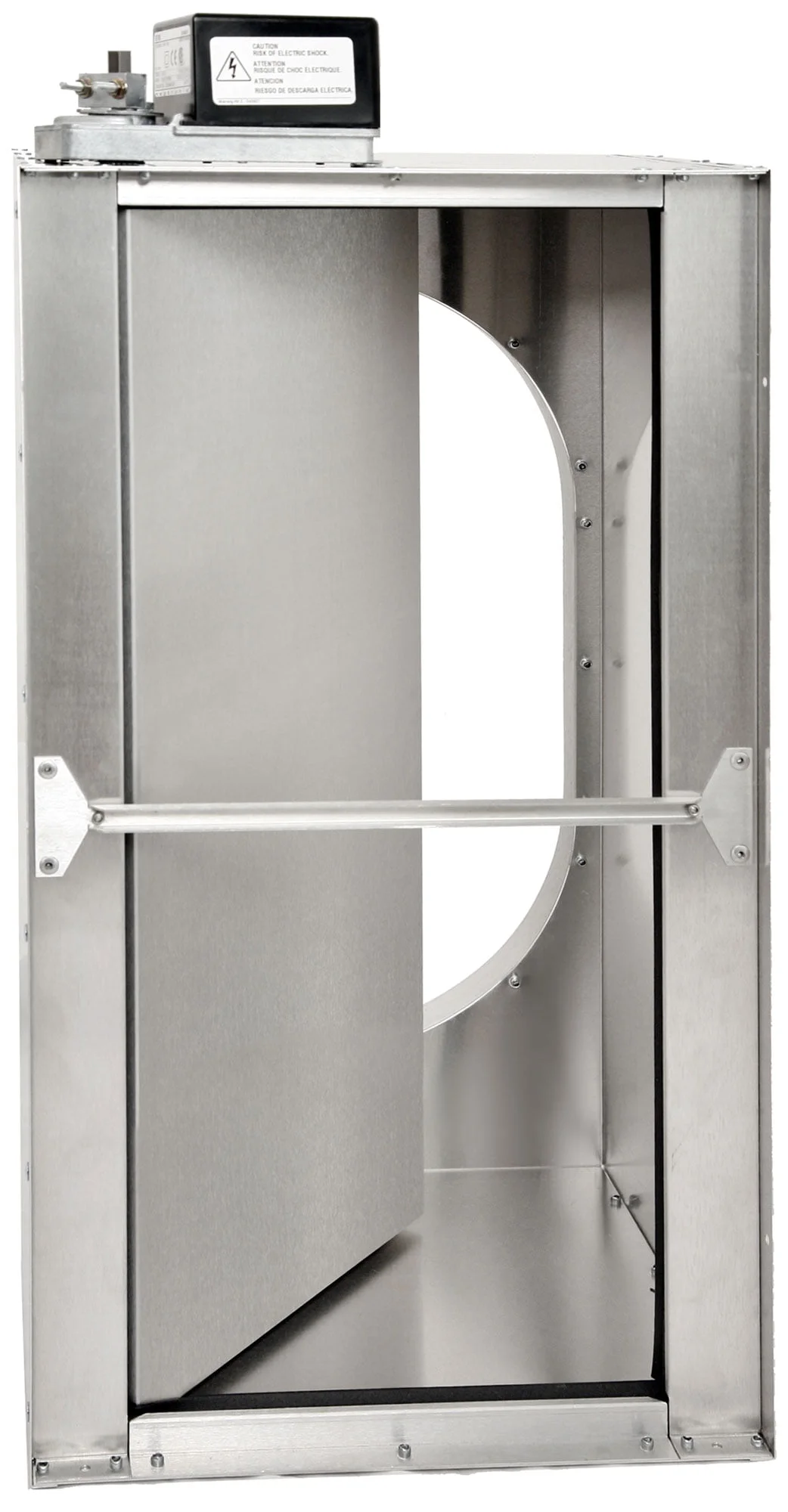

Industrial grade gravity fed back draft damper requires no power and is standard with all CentricAir whole house fans. The R5 insulated gravity damper is designed keep attic air from entering the living space when the whole house fan is not in use.
The single speed wall timer allows you to operate the fan on high speed. Countdown digitial wall timer. Fits in a single gang box.
OR
Plug & Play. No Wires To Run. Just plug into an outlet.
Our Wireless Single speed remote control with timer allows you to operate the fan up to 100 feet away.
Make your system more convenient to use and eliminate the need to cut holes and run wires down the wall with a wireless remote…
OR
2-speed wall switch with 50' Cable. Temperature, Timer and Speed Control (Hi/Low). Improves Comfort and Energy Efficiency. Plug & Play Connection. Eliminates Installing and Wiring Line Voltage Timer and Speed Switch
Wirelessly controls whole house fan using built-in timer or by temperature. Wireless remote sits on a bedroom table or used anywhere in the home. Improves Comfort and Energy Efficiency using Temperature Control. Never overcools the home and eliminates homeowner having to get up to adjust a timer. Never wastes energy because fan only runs when…
Compatible with our back draft damper, the Vertical Wall Mount Adapter lets you mount the gravity damper on a wall instead of the ceiling.
Dave B –
Outstanding customer service, very informative, great product, exactly as described
Arthur Sullivan (verified owner) –
Wonderful service!! We ordered the fan on Thursday and arrived Monday morning. Just in time for our heatwave. I spent the day installing it and that night we tried it out for the first time. My wife was a happy camper because she could actually sleep and not hear the noise of the box fan in the window. At first she was skeptical about this fan and would it would work in our large house. Especially since our bedroom is upstairs where all the heat goes. She can’t believe that in under 30 minutes we can have the entire upstairs cooled off and then the downstairs in only a short time after. We don’t know why more people don’t install a system like this one. It is ten times better then air conditioning. With air conditioning you just get stale air blowing around not very good for your health. But with the Centric whole house fan it is fresh air from outside. We cannot wait to try it in the winter when the house needs a good airing out. Another positive about this product is that our energy bill will reasonable compared to if we had air conditioning. So as I said, this is an excellent product, great customer service and a must for every home that wants to stay cool in the summer and have healthy air to breathe.
Philip M. Duncan –
We are fans of your fans. A great whole house cooling fan. Quiet. Remote controlled. Insulated damper to keep the cold out in the winter here in Wisconsin. Plus you have great customer service. You actually answer the phone! No leaving a message. No calling a country 1/2 way around the globe to get tech support.
ed stawicki –
The whole house fan I purchased was one of the best items I could have added to the home I am renovating. Like a lot of people, we have central air but nothing beats a fan that brings in the outdoor fresh air when it is appropriate. I have added a typical whole house fan to all of my previous homes but nothing compares to the Centric. The quiet operation is awesome. I can only add that the service I received regarding replacement switches was the crowning glory. This is a formula for a great company. Thank you
Joseph C (verified owner) –
I recommend to others highly. The product was well made, as quiet as a whisper and, with the remote, a joy to operate.
After about two years we experienced a problem. I called the Company. A real-life person answered and we were able to work through the issues. They sent me a new remote under warranty and the system is back up and running perfectly. What a joy not to have to deal with some stupid voice message tree with insane questions or a senseless bot wasting my time.
You’re customer service is great!
Sean Rollins (verified owner) –
This fan is really nice. It’s noticeably quieter than my friends comparable QuietCool model and is a heavier duty design as well. And it does a great job of cooling off the house. I would definitely recommend the wired 2 speed wall switch(I also ordered separately: the handheld remote and outdoor temperature sensor so I could link them together). With this setup, everything is pretty automated and worry free.
B Young –
I finished installing the 4.0 (R5) fan a couple of weeks ago, and I would like to let you know how pleased I am with the unit. It is amazingly quiet and very easy to operate. The system is so efficient that I usually only need to run it for less than an hor. The instructions were very easy to understand and the installation was quite easy; the only problems I encountered were with our house. It is really a well designed and high quality system that I would highly recommend to anyone.
Thank you for a great system
