The CentricAir 2.0 whole house fan provides a strong 1918 CFM (HVI-916) and requires about 2.5 square feet of net free attic ventilation. It costs about $0.03 per hour to operate and uses 207 WATTS of power. It’s designed to cool two story homes up to 1500 sq. ft. and single story homes up to 900 sq. ft.
The fan motors used in CentricAir systems are German engineered and provides 30% more power while using 1/3 less energy than other industry standard fans. These high efficient fans come with a 15-year warranty and are rated for 40,000 hours of operation.
Included with the system is an industrial grade backdraft damper, sound absorbing acoustical ductwork, custom high airflow grill, on/off remote control or wall switch/timer and all necessary hardware. Also available with select CentricAir products is our exclusive two-speed remote control with timer. (See included & upgrade options below)
The CentricAir 2.0 is a high quality, very powerful and ultra quiet alternative cooling solution. It uses a German engineered industrial grade fan motor that can provide 30% more power while using 1/3 less energy as compared to other industry standard fans.
These high-end industrial grade motors are built to last and are rated for approximately 40,000 hours of operation. The noise level is also really something to hear – or, actually not hear. At a very quiet 50 dBA on high, the 2.0 is whisper quiet. Every aspect of this system is built to a rigorous specification suitable to demanding industrial applications and is completely maintenance free.
A fundamental problem with traditional whole house fans was air leakage between the attic and living spaces. This could result in dirty attic air entering your home. The 2.0 takes care of this problem with an industrial-quality actuated damper that is thermally insulated and completely maintenance free. Silicone seals are provided to ensure sealing longevity; they also provide phenomenal resistance to weathering and changes in temperature. Silicone seals have an approximate service life of 30 years and remain flexible down to -40 degrees F/C.
The CentricAir 2.0 comes with a high air flow register that reduces air movement noise through the register. These high-performance grills look great too, so your system looks as inconspicuous as it sounds.
| Airflow | 1918 CFM (max); 1549 CFM low speed |
|---|---|
| Installation | Fits in between 16" on center joists |
| Electrical | 120 VAC, 60 Hz |
| Unit weight | 40 lbs total |
| Damper box size | 22" × 14" × 13.75" (L × W × H) |
| Grille size (outer) | 16" × 24" |
| Required attic venting | 2.5 sq. ft. net-free |
| Rough opening | 14" × 22" |
| Grille | Low profile, hi-air flow, cube-core aluminum (white) |
| Fan | 16-inch, industrial-grade motorized impeller |
| Control | Remote control or wall switch |
| Insulation | R-4 |
| Attic seal | Industrial-grade aluminum damper |
| Acoustical | 50 Decibals (dBA); 48 dBA low speed |
| Efficiency | 9.27 CFM/Watt (max) |
| Energy use | 207 Watts |
| Warranty | 15 year limited fan motor warranty. All other components and electrical parts are warranted for 1 year from date of purchase. Warranty excludes batteries. |
| Control | Choice of:
|
Due to product improvements and equipment upgrades, performance ratings and specifications are subject to change without notice.

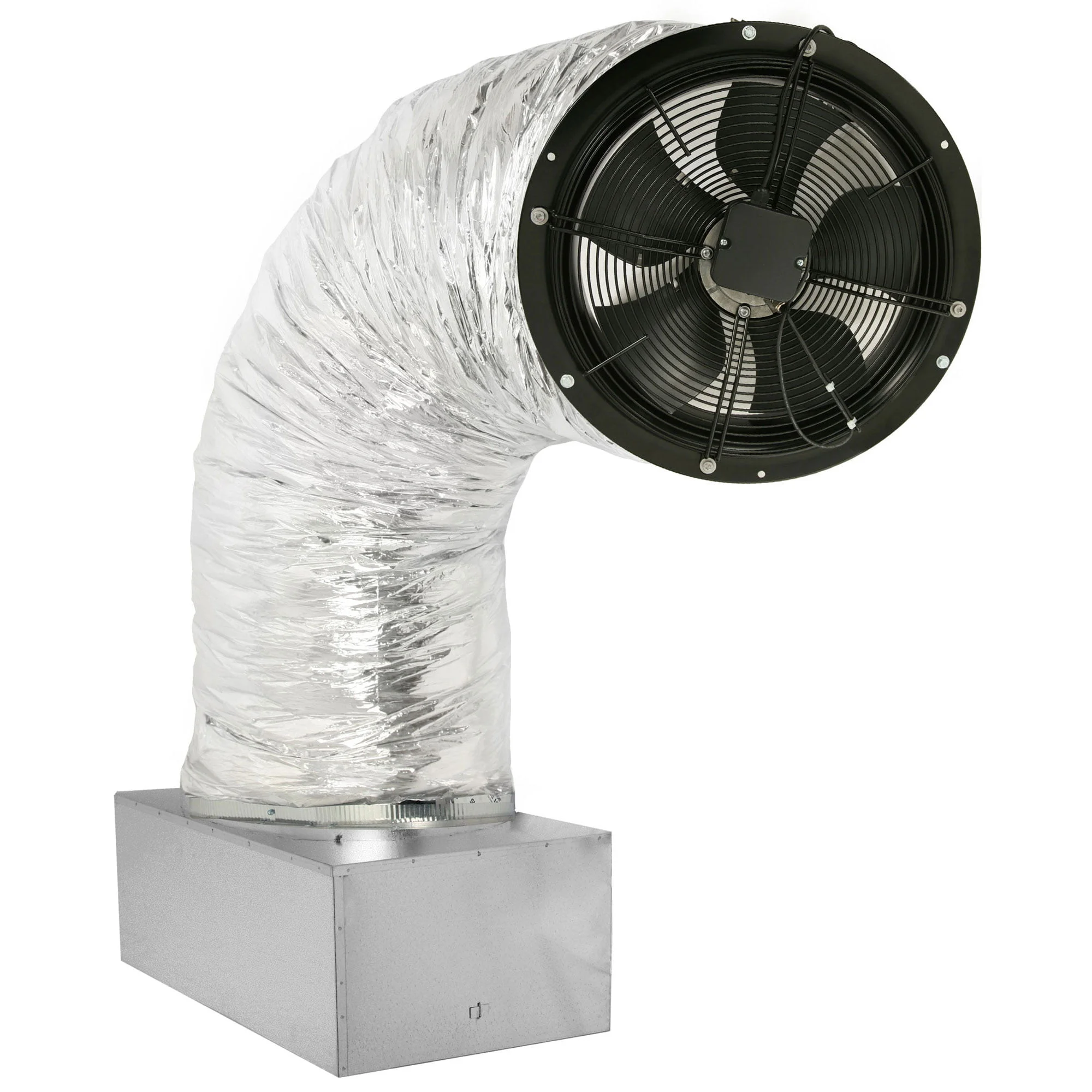

The CentricAir Fan mounted on its damper box
High-flow grille is designed to minimize noise from air movement

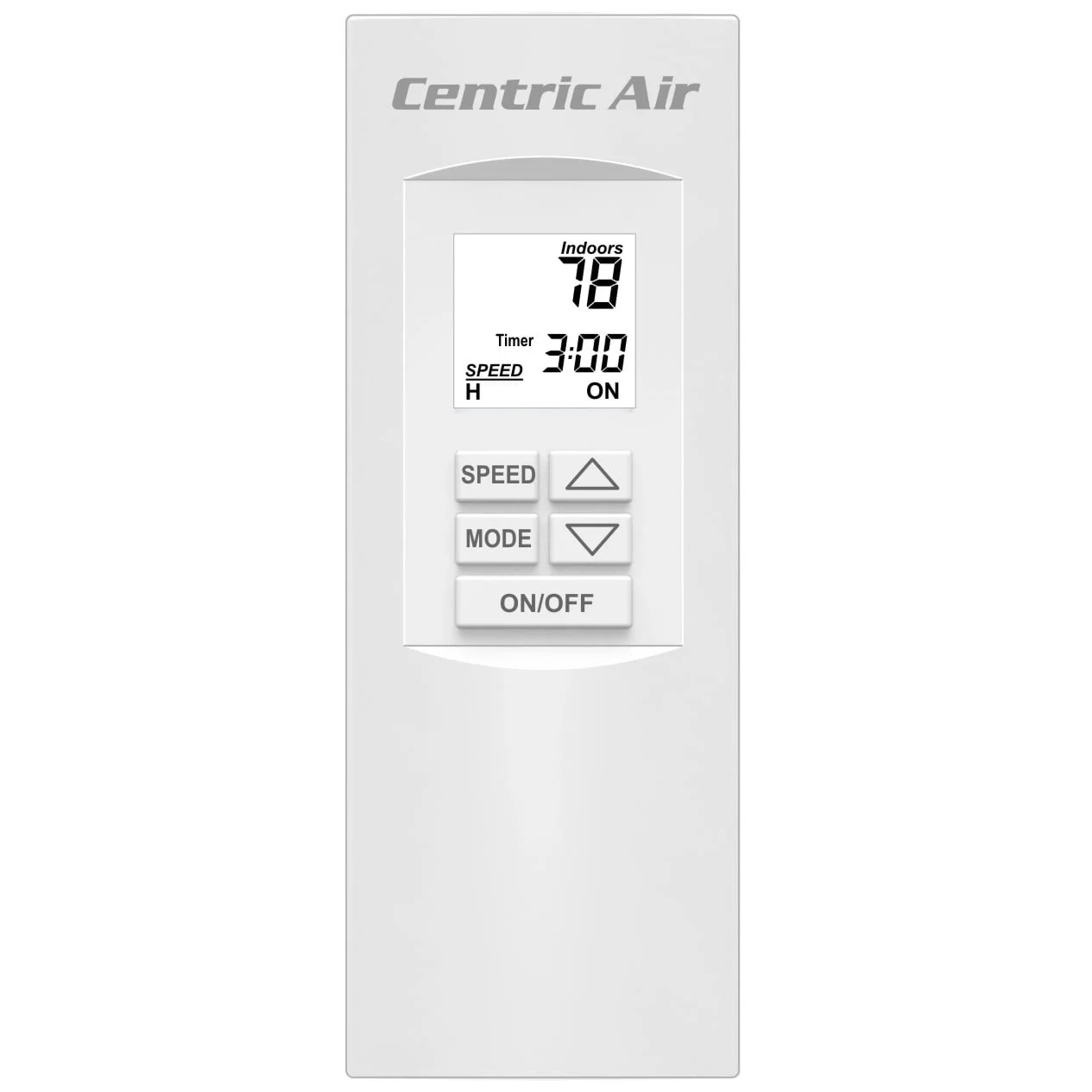

Centric Air 2-speed remote control with timer
Single Speed Remote Control

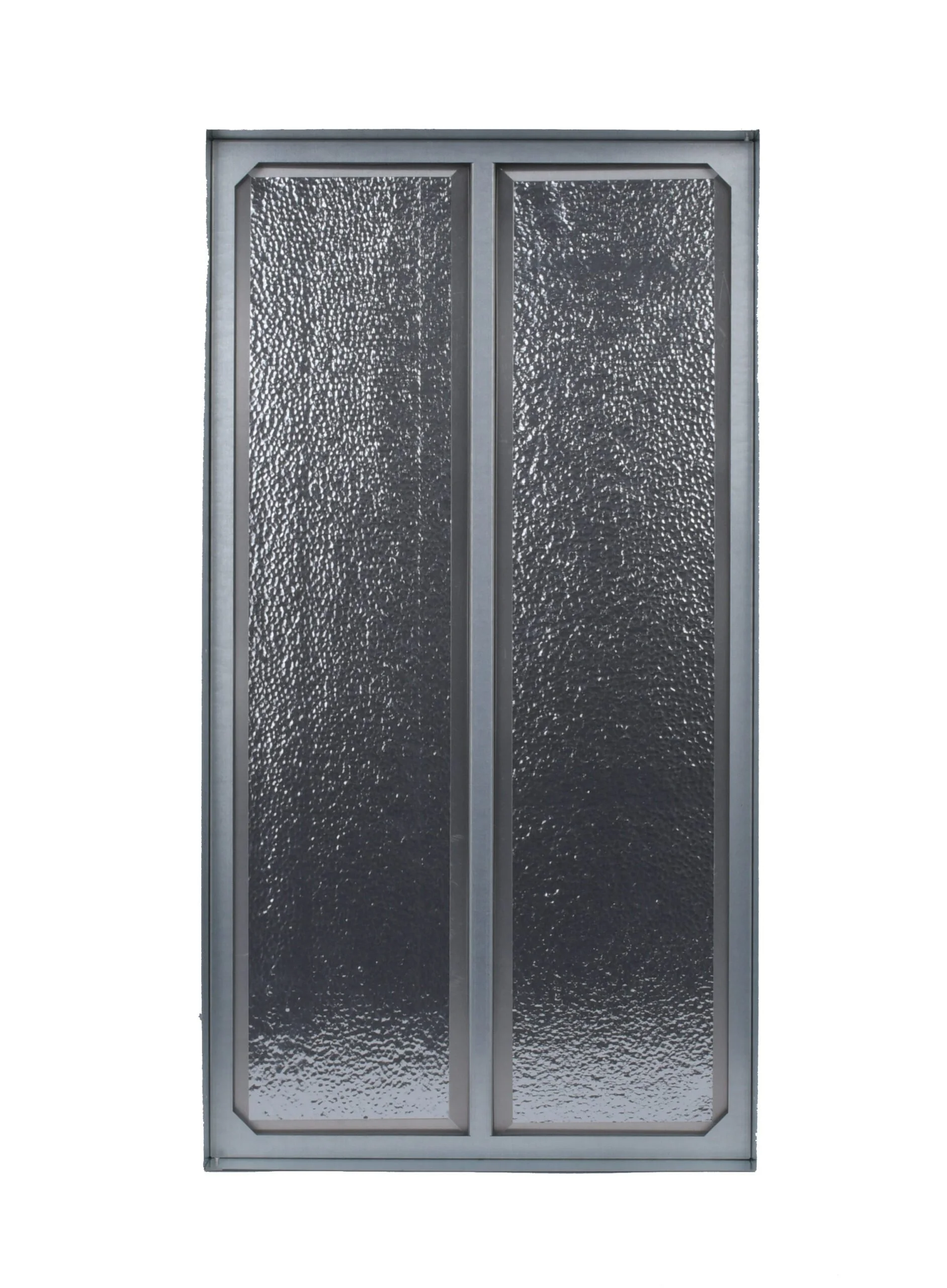

The R-5 Gravity Damper when Closed

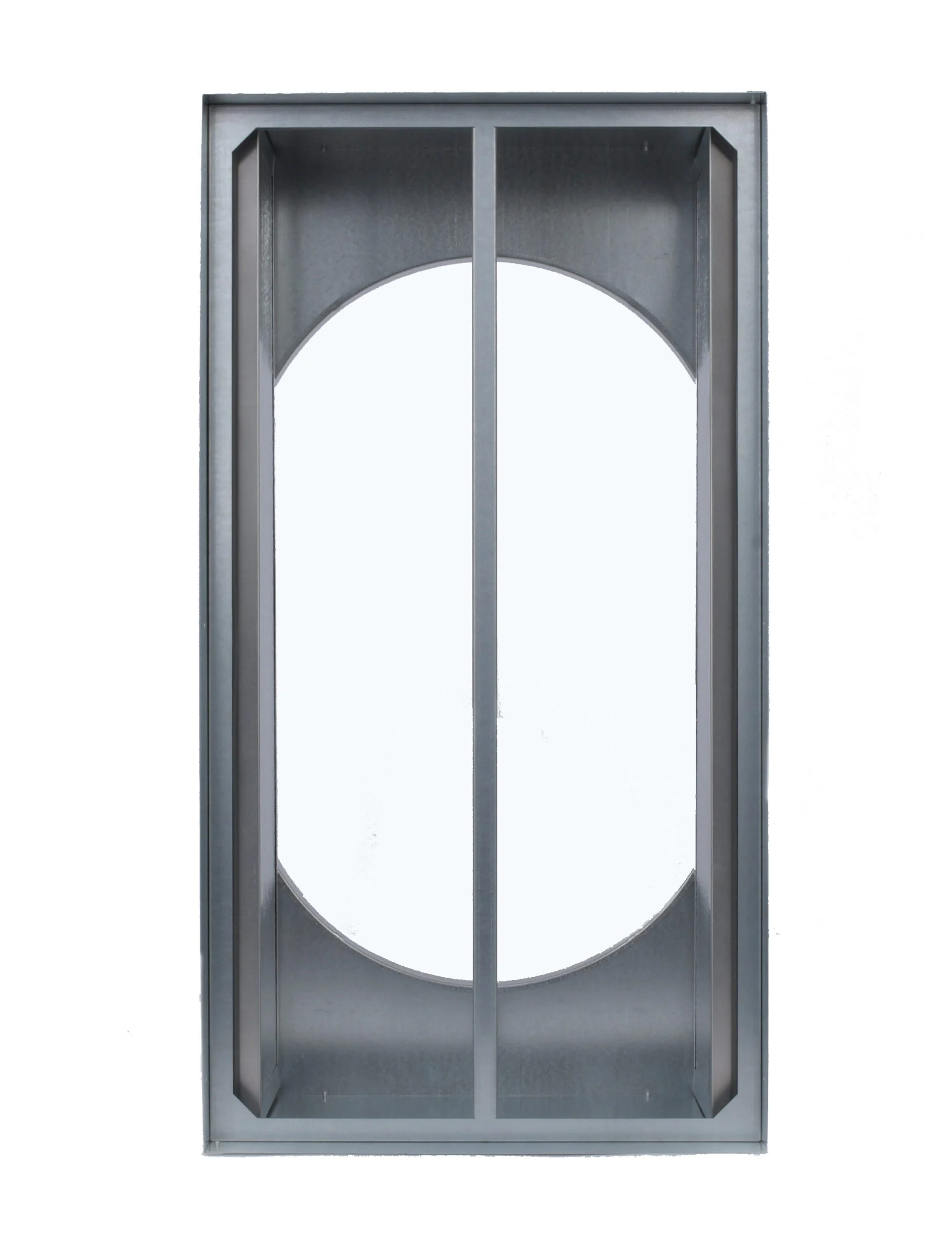

The R-5 whole house fan gravity damper when open.
Timer for use with the Two-Speed Wall Switch or alone as the Single-Speed Wall Timer

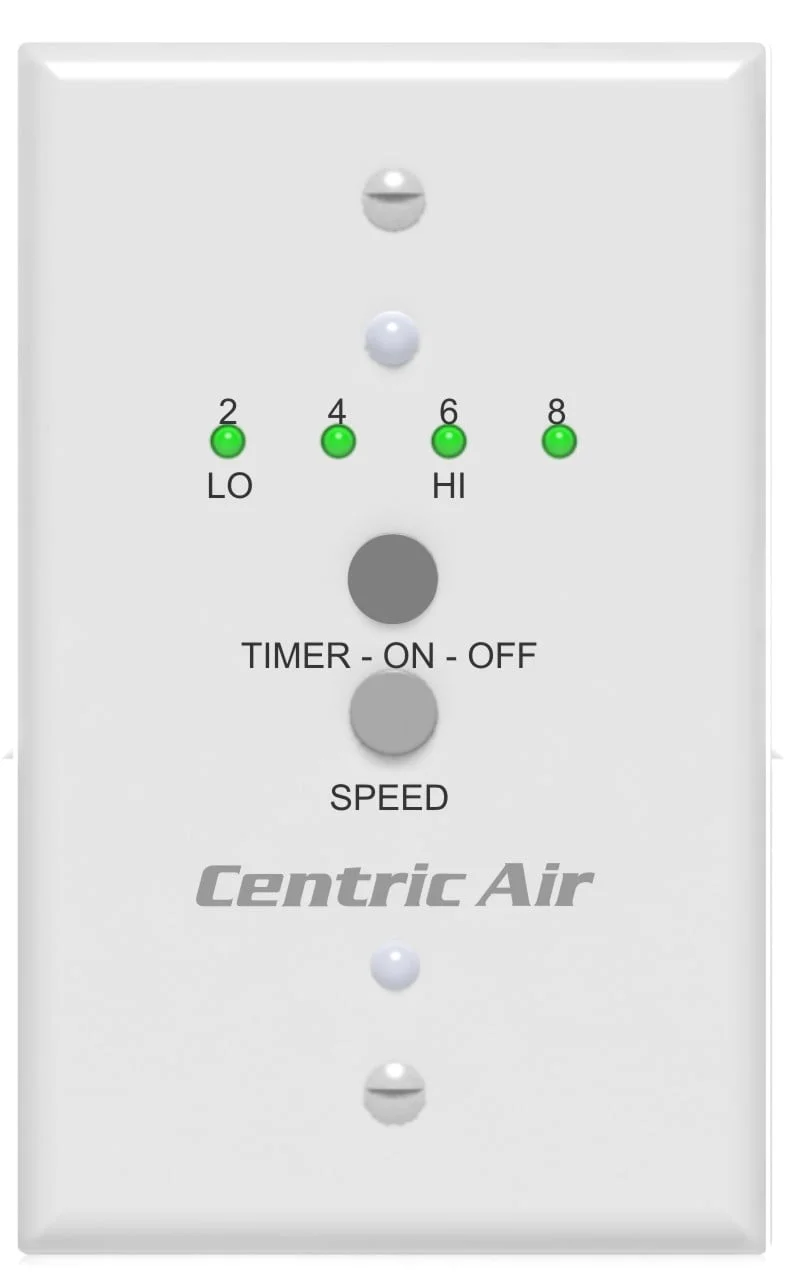

Two-Speed Wall Switch
