QA-Deluxe 6500 is for 2-story homes up to 4400 sqft & single story homes up to 3000 sqft and requires about 5.5 sqft of net free attic ventilation. It delivers a powerful 4478 CFM (HVI-916 certified airflow rating).
It comes with an option of an On/Off remote control with timer, two-speed (Hi/Low) remote with timer & temp control or two speed HI/LOW wall switch and digital timer. (See Control Options Toward Bottom of Page)
IMPORTANT: All CFM ratings for QA-Deluse have been verified by an independent testing agency authorized by the State of California as meeting the strict (HVI-916) standard. When comparing CFM (airflow) ratings against similar style whole house fans, it is important to compare the HVI-916 CFM certified airflow rating. This is the true apple to apples comparison. The following link is to the CA.Gov website and allows you to search a company’s Brand to see their products HVI-916 CFM rating CA.Gov
To see how our QA-Deluxe whole house fan compares against the competition click here: QA-Deluxe vs Competition
| Motor Voltage | 120 VAC, 60 Hz |
|---|---|
| Energy Use | Hi: 771 Watts Low: |
| Efficiency | 5.80 Air Flow Efficiency (CFM/Watts) Hi Speed |
| Air Flow | 4478 CFM (HVI-916) |
| Square Foot Coverage | For 2-Story Homes up to 4400 sq ft & Single Story Homes up to 3000 sq ft |
| # of Speeds | 2 |
| Duct Diameter | 20” |
| Duct Length | 7 Feet |
| Motor Head Diameter | 20” |
| Motor Head Length | 12 1/2” |
| Acoustics | Hi 51 dBa Low: 49 dBa |
| Damper | R5 Back Draft Damper |
| Control | Choice of:
|
| Warranty | 10 years |
| Framing | None required |
| Joist Cutting | None required: fits 16” or 24” center |
| Minimum Suggested Attic Venting | 5.5 SQ FT net free area |
| Ceiling Rough Opening | 14” x 28” |
| Grille Outside Dimension | 16” x 30” |
| Shipping Weight | 60 lbs. |
| Box Dimensions | 24”x24”x14” and 20”x20”x30” |
| In the Boxes | – QA-6500 Motorhead |
| Brand | QA-Deluxe |
| Adapter | Choice of:
|
Due to product improvements and equipment upgrades, performance ratings and specifications are subject to change without notice.

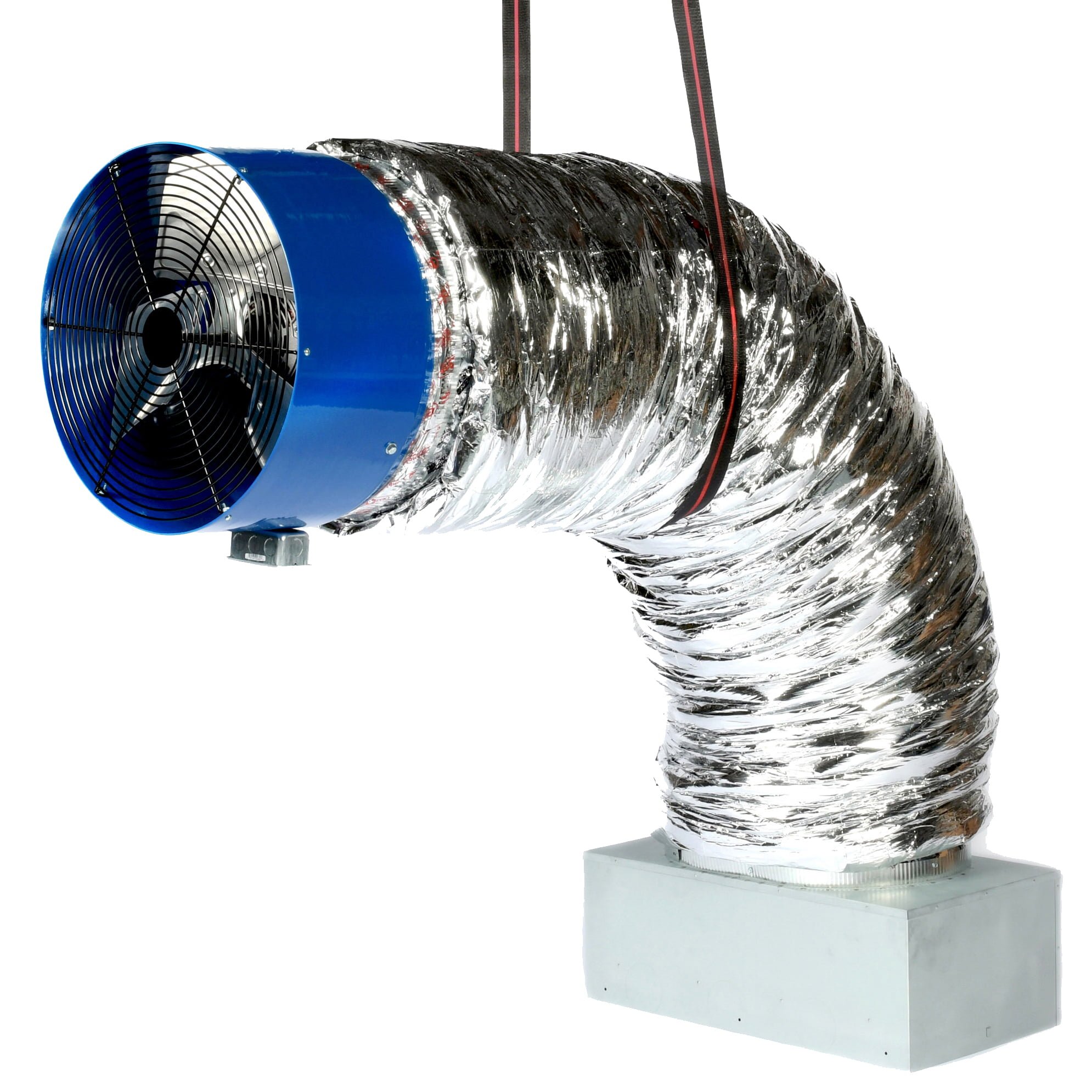

This shows us the QA-Deluxe Whole House Fan on its side so the grille is visible. When installed the only thing visible in the house is the grille.
A closeup of the connection between the QA-Deluxe fan body and duct.
The Single Speed Remote Control and Timer used with CentricAir and QA-Deluxe Whole House Fans.
When the fan is installed in your home, this grille is all you see. Everything else is hidden in the attic.
