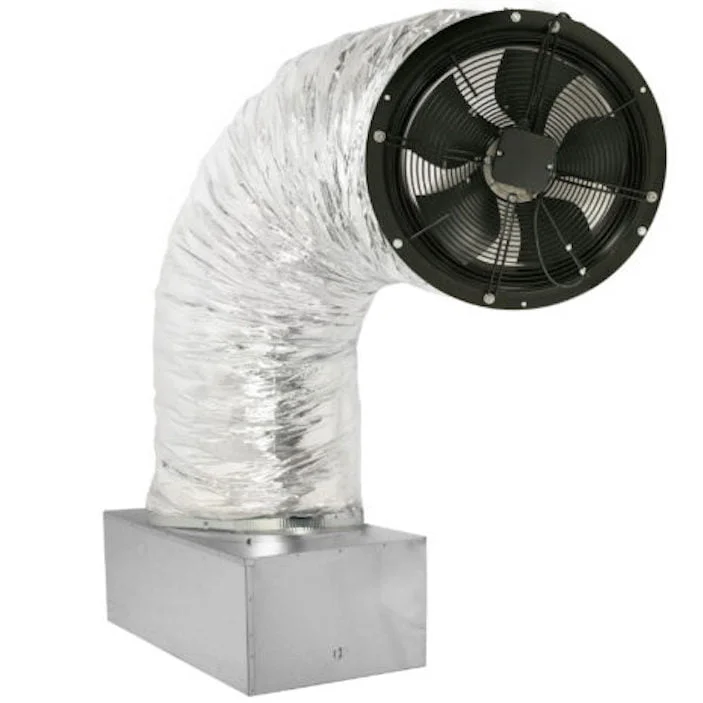

CentricAir 4.0 (ECM) High-Efficiency Motor whole house fan system delivers a powerful 4164 CFM (CA Title 24 Airflow). This CentricAir whole house fan requires about 5.5 sqft of net free attic ventilation and costs about $0.12 per hour to operate. It uses 749 WATTS of power on HI and even less on Low and Medium speeds and is designed to cool 2-story homes up to 4400 sqft and 1-story homes up to 3000 sqft.
This 4164 CFM whole house fan comes with a 3-speed low voltage wall switch with timer and temperature control. You can also upgrade your 4164 CFM ECM motor fan with our three-speed (Hi/Medium/Low) remote with timer & temp control. Also available with select CentricAir products is our exclusive cold climate damper. (See Included & Upgrade Options Below)
IMPORTANT: All CFM ratings for CentricAir have been verified by an independent testing agency authorized by the State of California as meeting the strict standard. When comparing CFM (airflow) ratings against similar style whole house fans, it is important to compare the CEC certified airflow rating. This is the true apple to apples comparison.
The CentricAir 4.0 (ECM) High Efficiency Motor is a high quality, very powerful and ultra quiet alternative cooling solution. It uses a German engineered industrial grade fan motor that can provide 30% power while using 1/3 less energy as compared to other industry standard fans.
These high-end industrial grade motors are built to last and are rated for approximately 40,000 hours of operation. The noise level is also really something to hear – or, actually not hear. At a very quiet 49 dBA on high, the 4.0 (ECM) High Efficiency Motor is very quiet. Every aspect of this system is built to a rigorous specification suitable to demanding industrial applications and is completely maintenance free.
A fundamental problem with traditional whole house fans was air leakage between the attic and living spaces. This could result in dirty attic air entering your home. The 4.0 takes care of this problem with an industrial-quality damper that is thermally insulated and maintenance free. Silicone seals are provided to ensure sealing longevity; they also provide phenomenal resistance to weathering and changes in temperature. Silicone seals have an approximate service life of 30 years and remain flexible down to -40 degrees F/C.
The CentricAir 4.0 (ECM) High Efficiency Motor comes with a high air flow register that reduces air movement noise through the register. These high-performance grills look great too, so your system looks as inconspicuous as it sounds.

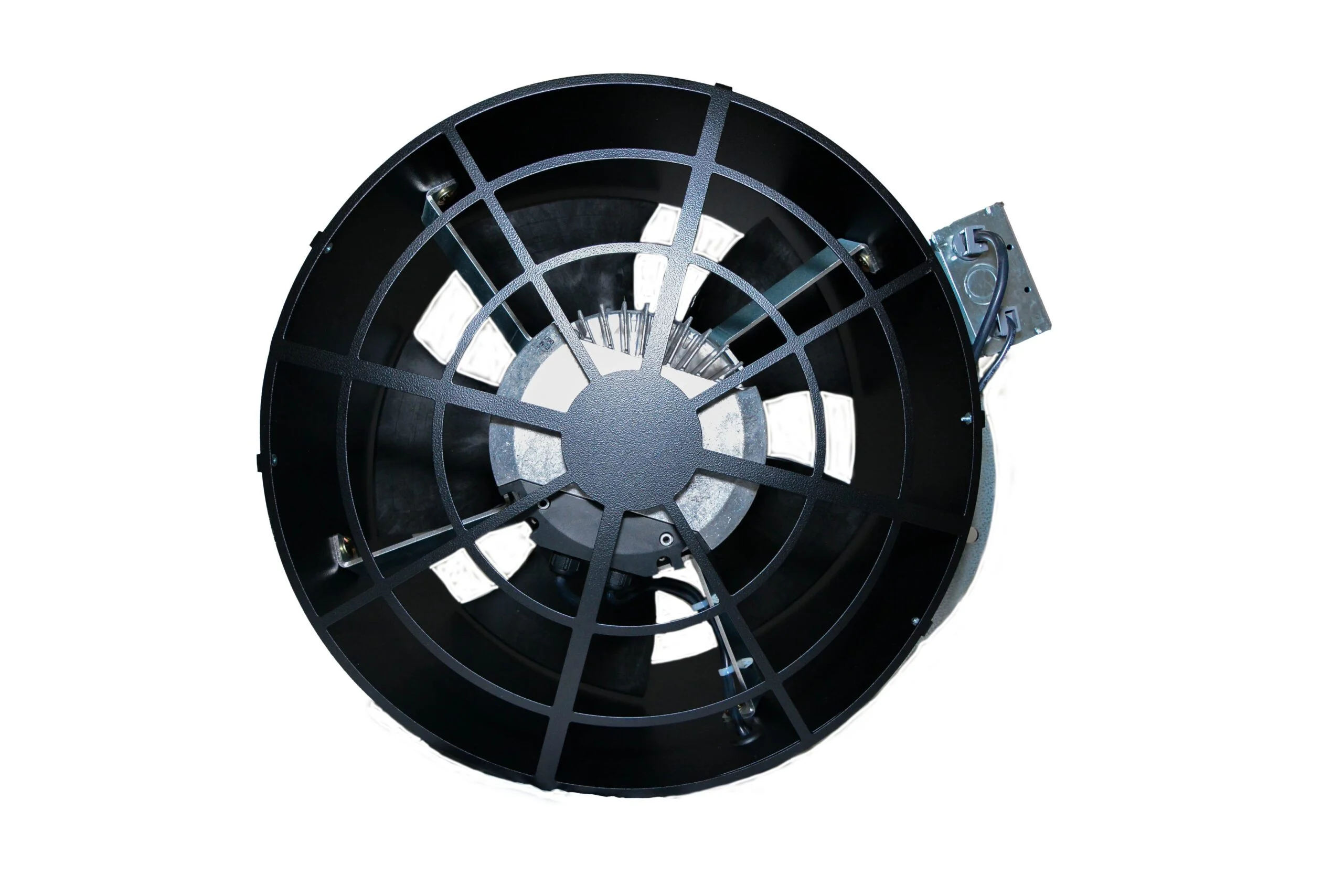

The German-engineered sealed motor and damper never requires lubrication or maintenance of any type.
Airflow | 4146 CFM (HVI-916) |
---|---|
Installation | Fits in between 16" or 24" on center joists |
Electrical | 120 VAC, 60 Hz |
Unit Weight | 64 lbs total |
Damper Box Size | 28" × 14" × 13.75" (L × W × H) |
Grille Size (outer) | 16" x 30" |
Required Attic Venting | 5.5 sq. ft. net-free |
Rough Opening | 14" × 28" |
Grille | Low profile, hi-air flow, cube-core aluminum (white) |
Fan | 20-inch, industrial-grade motorized impeller |
Control | Remote control or wall switch |
Control | Choice of:
|
Insulation | R-5 or R-10 (cold weather damper ) or R-50 (extreme cold weather damper) |
Attic seal | Industrial-grade maintenance free damper |
Acoustical | 49 Decibels (dBA); 47 dBA low speed |
Efficiency | 5.54 CFM/Watt (max) |
Energy use | 749 Watts |
Warranty | 15 year limited fan motor warranty. All other components and electrical parts are warranted for 1 year from date of purchase. Warranty excludes batteries. |
Damper | Choice of:
|
Optional Wall Mount Adapter | Choice of:
|
Brand | CentricAir |
Due to product improvements and equipment upgrades, performance ratings and specifications are subject to change without notice.
Industrial grade gravity fed rectangular backdraft damper requires no power and is standard with all CentricAir whole house fans. The R5 insulated gravity backdraft damper is designed keep attic air from entering the living space when the whole house fan is not in use.

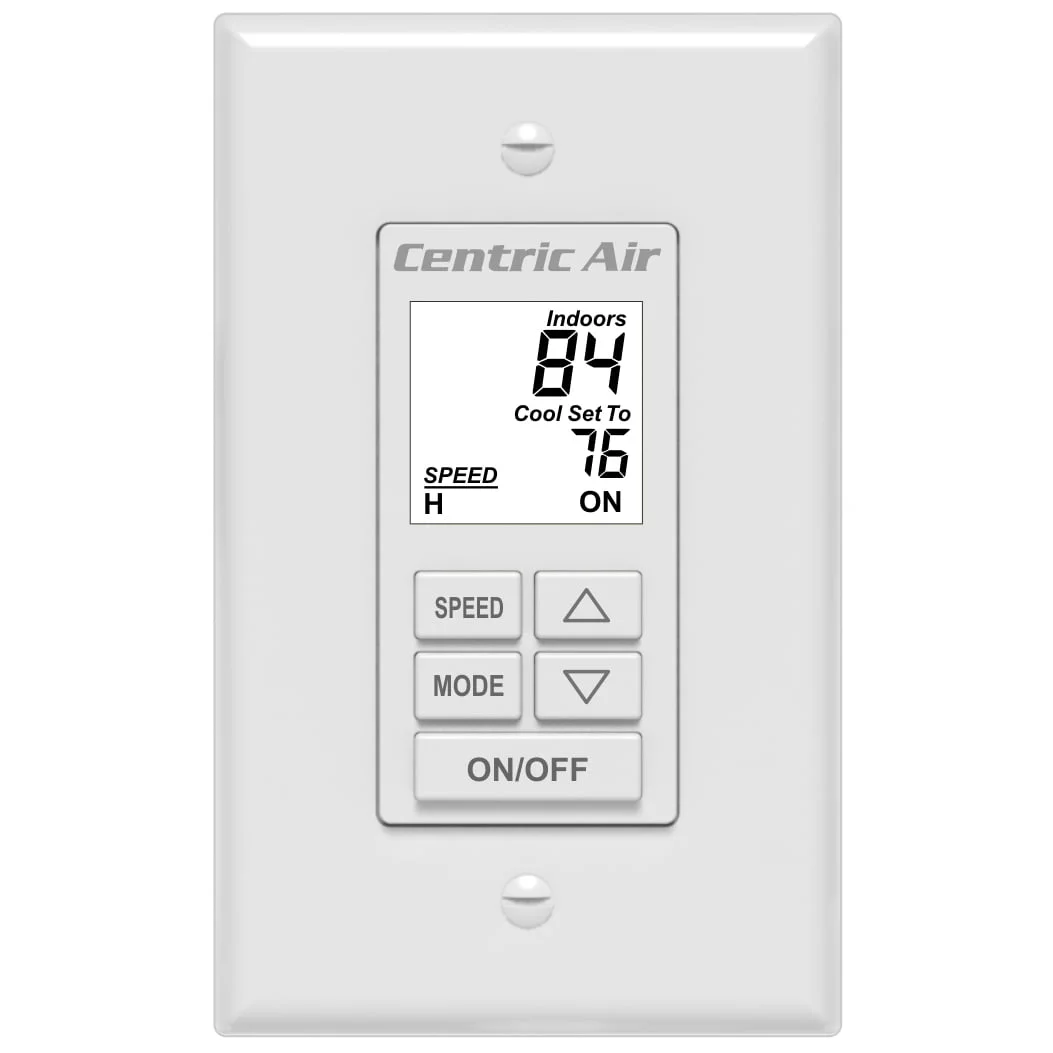

Three-speed wall temperature timer switch with 50′ Cable. Temperature, Timer and Speed Control. Improves Comfort and Energy Efficiency. Plug & Play Connection. Eliminates Installing and Wiring Line Voltage Timer and Speed Switch.
Wirelessly controls whole house fan using built-in timer or by temperature and can be operated from anywhere in the home. Never overcools the home and eliminates homeowner having to get up to adjust a timer. Never wastes energy because fan only runs when needed. Simple and Fast Installation - Eliminates wiring and installing a timer…

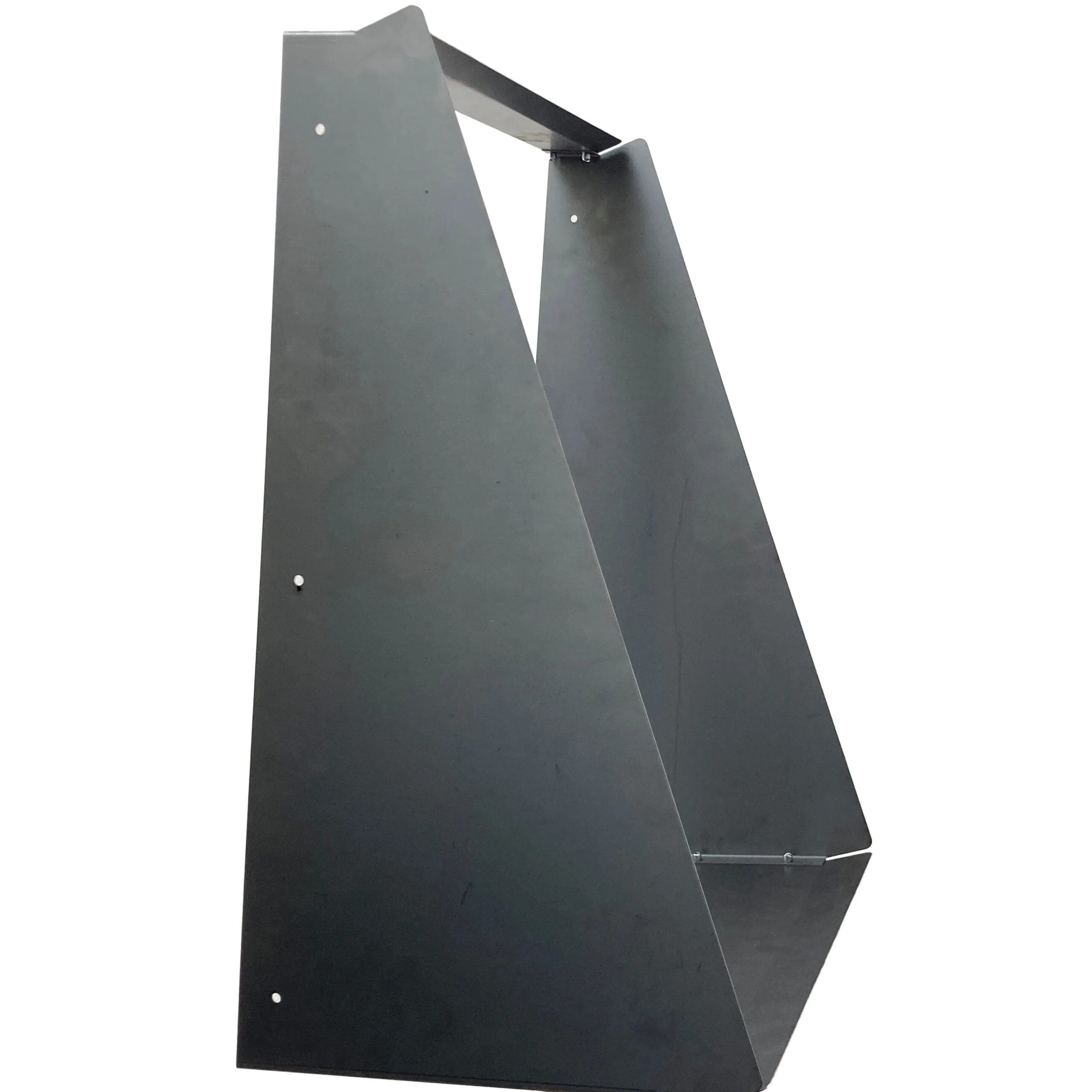

Compatible with our back draft damper, the Vertical Wall Mount Adapter lets you mount the gravity damper on a wall instead of the ceiling.
