Whole House Fan Installation Pictures

CentricAir Whole House Fan Installation Pictures

The following CentricAir whole house fan installation pictures were sent to us from a very satisfied customer who installed the system himself. He wanted to show others how to simple it was to install the whole house fan from the customers perspective. A more detailed whole house fan installation instruction manual is provided with your CentricAir purchase.

  1. Cutting Drywall and Installing Damper Box (No Framing Required)
    1. Cut out drywall in ceiling
      Photo of Cutting out the drywall in the ceiling.
    2. Slip damper box between existing joist and attach with screws provided.
      I

    3. Damper shown is Cold Climate Damper. Backdraft damper is included in standard price.
  2. Securing Fan

    Mount fan to attic structure using custom bracket provided.

  3. Ceiling Grille

    Install grille over opening in ceiling using screws provided.

  4. Electrical
    1. Plug electrical cord from fan into outlet socket on control box provided.
    2. Plug electrical cord from control box into a standard home electrical outlet socket.

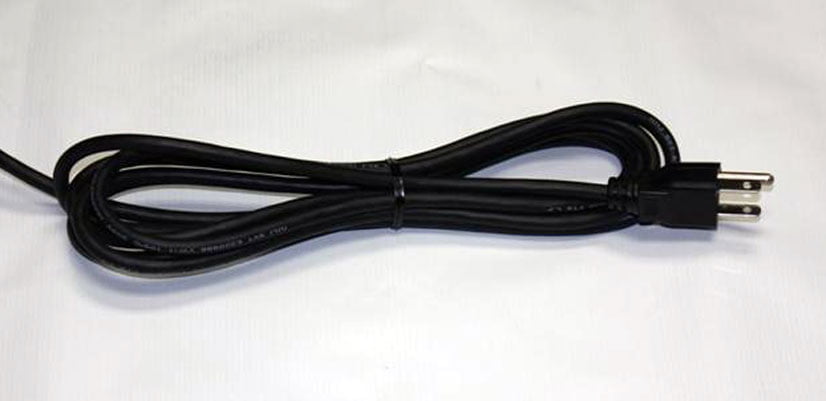

    A photo of the standard household power cord that you use to plug in your whole house fan.
